Sennheiser SKM-6000-BK-A1-A4 Handheld Transmitter

SENNHEISER SKM-6000-BK-A1-A4 Handheld Transmitter

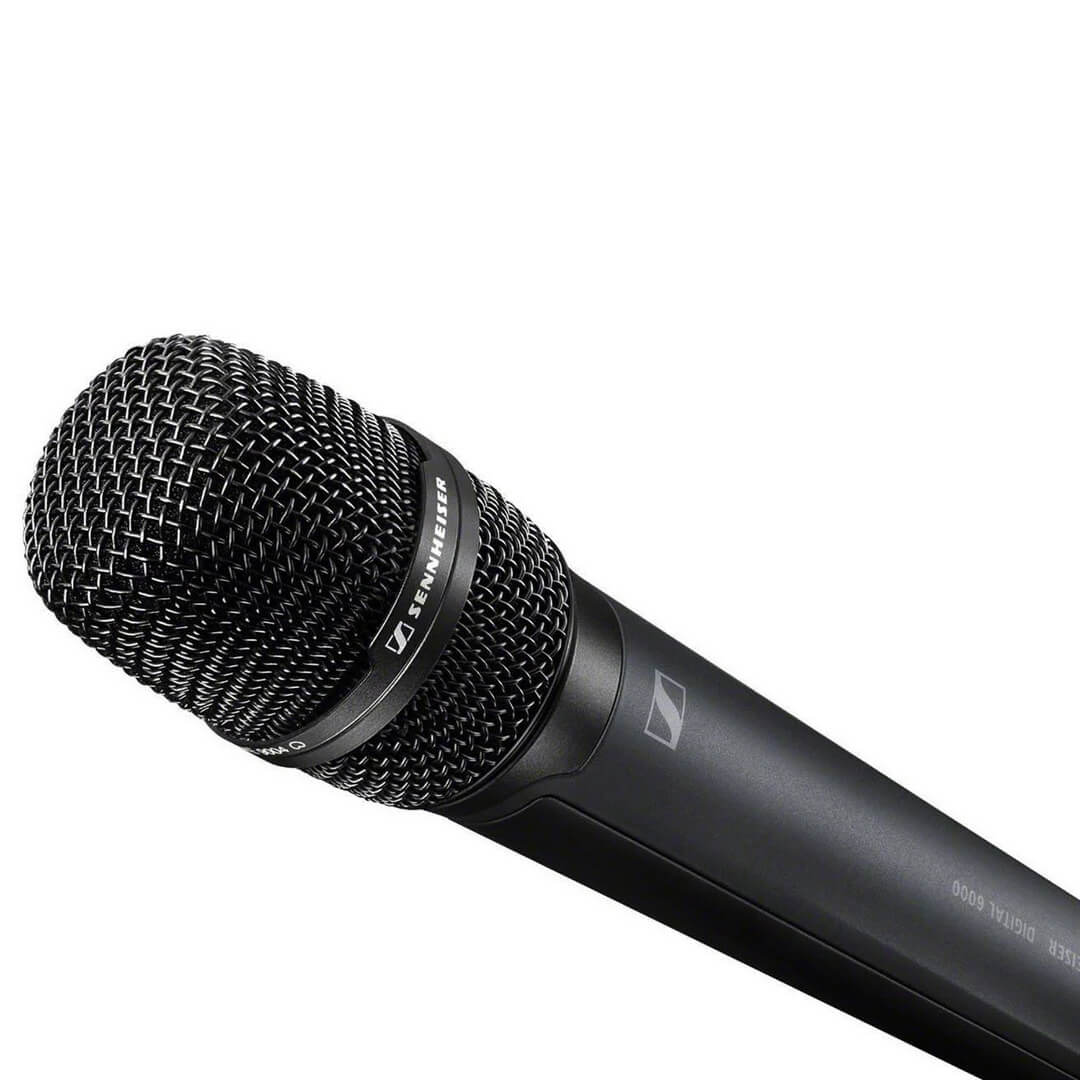

Attention: The photo is indicative and depicts a hand transmitter of the 6000 series with the capsule and battery case mounted. The capsule and the battery case are not included in the price and are available separately.

The SKM 6000 digital handheld transmitter is equipped for every voice, every song and every demand on the world’s live stages. Maximum transmission reliability is delivered by the renowned Long Range mode superior audio quality by the proprietary Sennheiser Audio Codec (SeDAC) from the wireless masterpiece, Digital 9000. Sophisticated electronics prevent disturbing intermodulation, even with numerous transmitters in the most confined spaces. This allows operation in an equidistant frequency grid and efficiently utilizes the available frequency spectrum. Via Sennheiser’s standard capsule interface, the SKM 6000 transmitter is compatible with microphone heads from evolution wireless G3, 2000, Digital 9000, and the Neumann KK 204 / 205 series. A special magnesium housing offers the perfect balance between low weight and roadworthy construction. The BA 60 lithium-ion battery pack ensures up to 5.5 hours of operation. Alternatively, operation is also possible with batteries from the B 60 battery set. The transmitter is fully compatible with the EK 6042 and EM 9046 in Long Range mode.

Features

• Three frequency variations (470-558 MHz, 550-638 MHz, 630-718 MHz)
• Sennheiser standard capsule interface, compatible with microphone heads from evolution wireless G3, 2000, Digital 9000, Neumann KK 204 and KK 205 series
• Highly effective intermodulation protection
• AES 256 encryption and Digital 9000 encryption
• Compatible with EK 6042 and EM 9046 in Long Range mode
• Li-ion battery packs with 5.5 hours run time
• Magnesium housing

Technical Data

• Dimensions 270 x 40 mm
• Weight Approx. 350 g (with BA 60 batter pack and ME 9005 microphone module)
• Power consumption Max. 960 mW
• RF output power 25 mW rms, 50 mW peak
• Switching bandwidth 88 MHz
• Operating time 5.5 h (with BA 60 battery pack)
• Frequency range 470 to 718 MHz, subdivided into 3 ranges:
• SKM 6000 A1 - A4: 470 - 558 MHz
• SKM 6000 A5 - A8: 550 - 638 MHz
• SKM 6000 B1 - B4: 630 - 718 MHz
• Audio codec SeDAC (Sennheiser Digital Audio Codec)
• Frequency stability < 5 ppm
• Tunability 25 kHz steps
• Lower cut-off-frequency Adjustable: 80 Hz, 100 Hz, 120 Hz
• Encryption AES 256 and Digital 9000 encryption
• Audio frequency response 30 Hz - 20 kHz (3 dB)
• Audio Gain Can be set in 3 dB steps from 0 dB to +62 dB (for each capsule)
• Modulation scheme Digital modulation long range mode
